Fuel dispenser CENSTAR 42 series petrol station equipments

FOB Reference Price:Get Latest Price
$2,000.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Certificate::
OIML,ATEX,IFSF,ISO9000,ISO14000,Russian certificates
Application::
gasoline,diesel,kerosene
Supply Ability
Supply Ability:
6000 Set/Sets per Month
Packaging & Delivery
Packaging Details
by wooden case
This model must be loaded in 40" HQ
Net size: 1220*820*2370mm
Package size: 1280*740*2480mm
Gross weight: from 455KG to 525KG
Port
China Main Port
Picture Example:
package-img

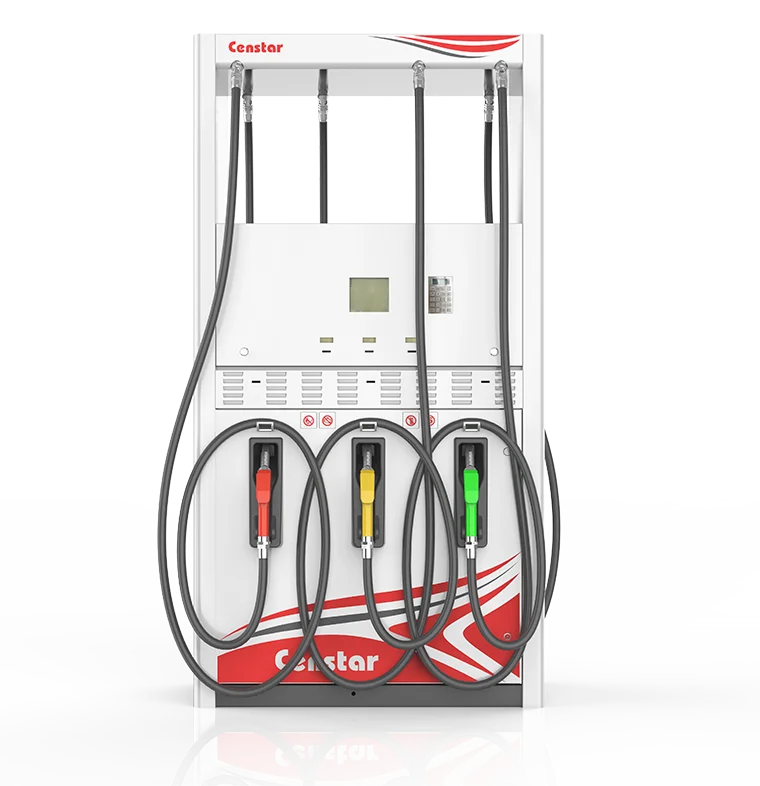

Fuel dispenser CENSTAR 42 series car service station equipment

more matured than traditional design2)compact structure3)convenient maintenance4)stable operation



Censtar Filling Station Fuel Dispenser

a) CS42J4240G: 4 hoses, 2 products, 2 displays for each side

b) CS42J6360G: 6 hoses, 3 products, 3 displays for each side



Remote fuel dispenser:

a) CS42D4240F: 4 hoses, 2 products, 2 displays for each side

b) CS42D6360F: 6 hoses, 3 products, 3 displays for each side



Specifications:

1) GP03 gear pump and LLG05 4-piston flow meter used

2) Wide range for power supply

3) Last sales recall

4) Hose retraction

5) International solenoid valve

6) Big LCD display with high light back ground source

7) Space for local card payment system

8) Interface for local management system

9) Automatic shutoff nozzle

10) Multi filtration system 1

11) The internal filters can be cleaned

12) Keypad or without keypad

13) Vapor recovery system

14) Low or high temperature

15) Emergency shutoff valve for remote dispenser

16) Net size: 1,220 x 820 x 2,370mm

Dispensing Pump



Technical Parameters

Accuracy: ±0.25%

Flow rate range: 5 to 50 liter per minute

Noise: ≤80dB(A)

Intake vacuum: ≥54kPa

Display: Sales 0.00 to 9999999

Volume: 0.00 to 99999.99

Unit price : 0.00 to 99999

Decimal point position can be chosen

Electrical totalizer: Volume 0 to 42949672.95L

Money 0 to 42949672.95

Power supply: AC380V or AC220V with a changing range from -15% to +10%

Motor's output power: 750W

Working environmental temperature: -40oC to +55 oC

Relative humidity: 30% to 90%
