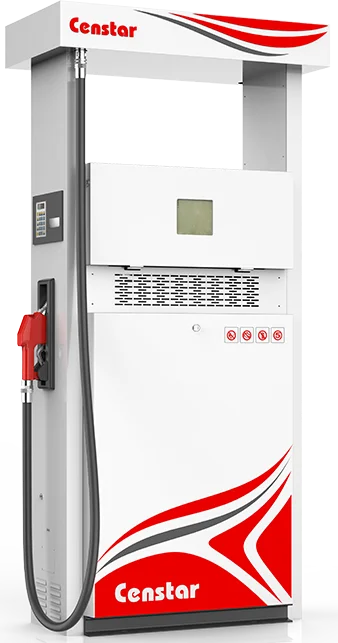

CS32 most popular 220V ex-proof fuel dispenser gasoline diesel oil petrol 1 nozzle

FOB Reference Price:Get Latest Price
$1,000.00 - $2,000.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Censtar
Model Number:
cs32
Partners:
PetroChina, Sinopec, CNOOC, BP, Shell, GE, Emerson, OPW, etc.
Application:
gasoline, diesel oil, kerosene
Supply Ability
Supply Ability:
6000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Wooden case
Package size:1060*520*2255mm
Port
Tianjin/Qingdao/Shanghai
Picture Example:
package-img

CS32 most popular 220V ex-proof fuel oil transfer pumps



Censtar fuel dispensers  are installed in the coldest Siberia and the hottest and wettest Sri Lanka.

Censtar,top brand in Chinese greaser industry,pioneered a number of "FIRSTS" in Chinese fuel-servicing equipment industry,won 14 national patents in the R&D of fuel-servicing equipments.





 Features:

 1) A traditional series,Censtar first generation products.

 2) With traditional hydraulic to keep the simple maintenance

 3) The electronic parts are as same as the other models to realize the same function for the service stations



 Suction:

 1) CS32C1110A: 1 hose, 1 product, 1 display for each side

 2) CS32C2220A: 2 hoses, 2 products, 2 displays for each side

 3) CS32C2120A: 2 hoses, 1 product, 2 displays for each side



Specifications:

 1) No remote dispenser applicable

 2) Hard piston flow meter;independent air separator and by-pass valve;

 3) Automatic shut off nozzle available

 4) Interface for local management system, space for local card payment

      system available

 5) Net size: 1030 x 500 x 2,100mm



 Parameters:

Accuracy: ±0.25%

Flow rate range:5 to 50 liter per minute

Noise: <80dB(A)

Intake vacuum:>54kPa

Display:Sales 0.00 to 9999999

Volume 0.00 to 99999.99

Unit price:0.00 to 99999

Decimal point position can be chosen

Electrical totalizer:0.00 to 999999.99

Mechanical totalizer:0.00 to 999999.99

Power supply AC380V or AC220V with a changing range form -15% to +10%

Motors out power: 750 W for vane pump an 1000W for gear pump

Working environmental temperature:-40 to +55

Relative humidity:30% to 90%

Horizontal distance from tank to dispenser < 15m

Vertical distance form tank to dispenser pump <4m
